מצלמת אבטחה Provision מכשיר הקלטה משולב PROVISION SH-2L MM 8 AHD 2IP

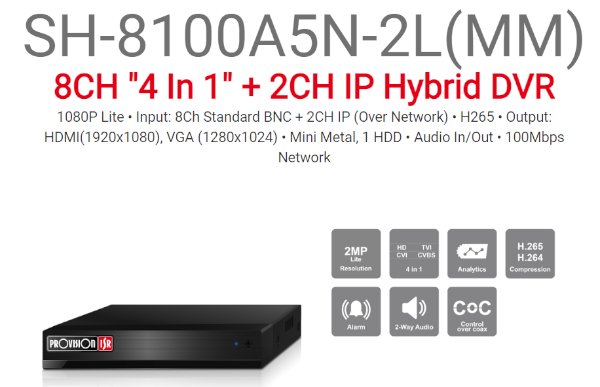

SH-8100A5N-2L(MM)

Video:

Input: 8CH Standard BNC + 2CH IP (Over Network)

Output: HDMI(1920×1080), VGA (1280×1024, 1024×768)

Recording:

IP: 5MP and lower: 30/25FPS Per Channel

AHD: 2MP lite / 1MP: Up to 15/12FPS Per Channel

TVI: 2MP lite / 1MP: Up to 15/12FPS Per Channel

CVI: 2MP lite / 1MP: Up to 15/12FPS Per Channel

CVBS: 960H: Up to 30/25FPS Per Channel

Playback:

8 Channel Simultaneously (Local)

4 Channel Simultaneously (Remote)

Analytics:

For AHD Cameras Line Crossing (No Direction Choice), Sterile Area, Smart Search

For IP Cameras Line Crossing (With Direction Choice), Sterile Area, Item Monitoring, Camera Tampering, Smart Search

Bandwidth:

Incoming: 16Mbps

Outgoing: 60Mbps

Audio:

Input: 1 Channel (RCA) + IP Camera inputs

Output: 1 Channel (RCA) + IP Camera outputs

2 Way audio

Storage:

1 x SATA (Up to 6TB)

USB Port:

2 x USB2.0

Network:

RJ-45: 100Mbps

Alarm:

Input: IP Cameras inputs only

Output: IP Cameras outputs only

PTZ / Keyboard:

Supported Protocols: Pelco D, Pelco P, Samsung, Visca, ONVIF, CoC
