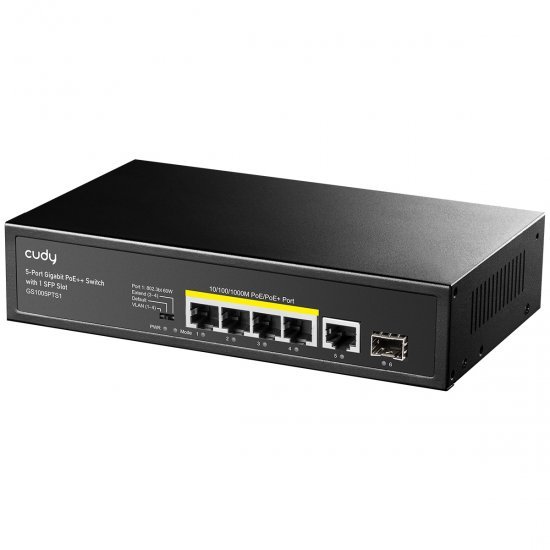

ראוטר Cudy מתג לא מנוהל CUDY GS1005PTS1 5PORT POE 1XSFP total 120W

'

מפרט

Model

GS1005PTS1-IL

Ethernet

4*10/100/1000M PoE Port 1*1000M RJ45 Port 1* Gigabit SFP Uplink Port

Switching Capacity

12Gbps

Throughput

8.928Mpps

Packet Buffer

1Mb

MAC Address

2K

Jumbo Frame

9216bytes

Transfer Mode

Store and forward

MTBF

100000 hour

Network protocol

IEEE802.3 (10Base-T) IEEE802.3u (100Base-TX)IEEE802.3ab(1000Base-TX)IEEE802.3z(1000Base-FX)IEEE802.3x (Flow control)

PoE Protocol

IEEE802.3af （15.4W）IEEE802.3at （30W）IEEE802.3at （4 Pair 60W）

Network Medium

10Base-T : Cat3、4、5 or above UTP(≤100m) 100Base-TX : Cat5 or above UTP(≤100m) 1000Base-TX : Cat5 or above UTP(≤100m)

Optical Media

Multimode fiber : 50/125, 62.5/125, 100/140μm Single mode fiber: 8/125, 8.7/125, 9/125, 10/125μm

Mode（DIP）

10Base-T : Cat3、4、5 or above UTP(≤100m) 100Base-TX : Cat5 or above UTP(≤100m) 1000Base-TX : Cat5 or above UTP(≤100m)

1-6 Gree（Link&Data）

Lighting：Connecting Flashing：Data Transmit Un-Light：Disconnect

MAC Address

2K

Jumbo Frame

9216bytes

Transfer Mode

Store and forward

MTBF

100000 hour

Network protocol

IEEE802.3 (10Base-T) IEEE802.3u (100Base-TX)IEEE802.3ab(1000Base-TX)IEEE802.3z(1000Base-FX)IEEE802.3x (Flow control)

Product Dimension

200*118*44mm

Package Dimension

245*190*60mm

N.W

0.6kg

G.W

0.9kg

Packing Info

Carton MEAS：505*320*402mm Packing Qty：20units Packing Weight：19KG

Package List

Input Voltage ：AC 100-240 V

מפרטו

Package List

Switch 1 pcs, Power cord 1 pcs, User manual 1 pc, Certification 1 pc,
