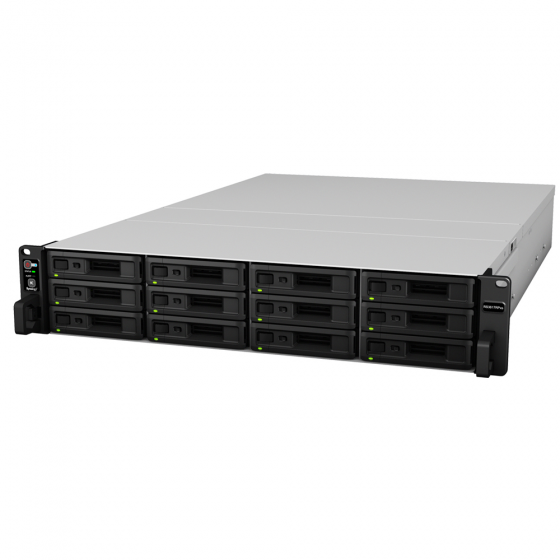

שרת NAS Synology RS3617RPxs 12BAY

CPU

CPU Model Intel Xeon D-1521

CPU Architecture 64-bit

CPU Frequency Quad Core 2.4 (base) / 2.7 (turbo) GHz

Hardware Encryption Engine (AES-NI)

Memory

System Memory 8 GB DDR4 ECC UDIMM

Memory Module Pre-installed 8 GB (8 GB x 1)

Total Memory Slots 4

Memory Expandable up to 64 GB (16 GB x 4)

Notes

Synology reserves the right to replace memory modules with the same or higher frequency based on supplier's product life cycle status. Rest assured that the compatibility and stability have been strictly verified with the same benchmark to ensure identical performance.

Please select Synology memory modules for optimum compatibility and reliability. Synology will not provide complete product warranty or technical support if non-Synology memory modules are used for memory expansion.

Storage

Drive Bays 12

Maximum Drive Bays with Expansion Unit 36

Compatible Drive Type* (See all supported drives) 3.5" SATA HDD

2.5" SATA HDD

2.5" SATA SSD

Maximum Internal Raw Capacity 192 TB (16 TB drive x 12) (Capacity may vary by RAID types)

Maximum Raw Capacity with Expansion Units 576 TB (192 TB + 16 TB drive x 24) (Capacity may vary by RAID types)

Maximum Single Volume Size* 200 TB (32 GB RAM required, for RAID 5 or RAID 6 groups only)

108 TB

Hot Swappable Drive

Notes

"Compatible drive type" indicates drives that have been tested to be compatible with Synology products. This term does not indicate the maximum connection speed of each drive bay.

The maximum raw capacity is not limited by the maximum single volume size. Synology NAS models may utilize capacities over the maximum single volume size as long as each volume created is below the limit. (Learn more)

Each internal volume (may consist of multiple drives) is expandble up to 108TB (with memory less than 32GB) or 200TB (with memory equal to or greater than 32GB).

External Ports

RJ-45 1GbE LAN Port 4 (with Link Aggregation / Failover support)

USB 3.0 Port 2

Expansion Port 2

PCIe

PCIe Expansion 2 x Gen3 x8 slots (x8 link)

Add-In-Card Support PCIe Network Interface Card (Learn more)

M2D18 – Dual M.2 SATA SSD adapter card for SSD cache

Notes

RS3617RPxs with M2D18 can only support M.2 SATA SSD. M.2 NVMe/AHCI PCIe SSD is not supported.

File System

Internal Drives Btrfs

EXT4

External Drives Btrfs

EXT4

EXT3

FAT

NTFS

HFS+

exFAT*

Notes exFAT Access is purchased separately in Package Center.

Appearance

Form Factor (RU) 2U

Size (Height x Width x Depth) 88 mm x 482 mm x 724 mm

Weight 14.5 kg

Rack Installation Support* 4-post 19" rack (Synology Rail Kit – RKS1317)

Notes The rail kit is sold separately

Others

System Fan 80 mm x 80 mm x 4 pcs

Fan Speed Mode Full-Speed Mode

Cool Mode

Quiet Mode

Easy Replacement System Fan

Power Recovery

Noise Level* 50.2 dB(A)

Scheduled Power On / Off

Wake on LAN / WAN

Power Supply Unit / Adapter 500 W

Redundant Power Supply

AC Input Power Voltage 100 V to 240 V AC

Power Frequency 50/60 Hz, Single Phase

Power Consumption* 116.42 W (Access)

65.49 W (HDD Hibernation)

British Thermal Unit 397.24 BTU/hr (Access)

223.46 BTU/hr (HDD Hibernation)

Notes Power consumption is measured when it is fully loaded with Western Digital 1TB WD10EFRX hard drive(s).

Noise Level Testing Environment: Fully loaded with Seagate 2TB ST2000VN000 hard drive(s) in the idle state. Two G.R.A.S. Type 40AE microphones, each set up 1 meter away from the Synology NAS at the front and rear. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75?C; Humidity: 58.2-61.8%

Temperature

Operating Temperature 5°C to 35°C (40°F to 95°F)

Storage Temperature -20°C to 60°C (-5°F to 140°F)

Relative Humidity 5% to 95% RH

Certification

EAC

VCCI

CCC

RCM

KC

FCC

CE

BSMI

Warranty 5 Years

Notes The warranty period starts from the purchase date as stated on your purchase receipt. (Learn more)

Environment RoHS Compliant

Packaging Content Main Unit X 1

Accessory Pack X 1

AC Power Cord X 2

Quick Installation Guide X 1

Optional Accessories D4EC-2666-8G DDR4 ECC UDIMM*

D4EC-2666-16G DDR4 ECC UDIMM*

Surveillance Device License Pack

Expansion Unit: RX1217/RX1217RP X 2

Synology Ethernet Adapter E10G17-F2

Synology Ethernet Adapter E10G18-T1

Synology Ethernet Adapter E10G18-T2

Synology M2D18 M.2 SSD adapter card

Synology Rail Kit Sliding – RKS1317

VS360HD

VS960HD
